Full name: LASER DEVICE MILTA-F-5 «BIO»-laser power 0-14
Year of development: 2015

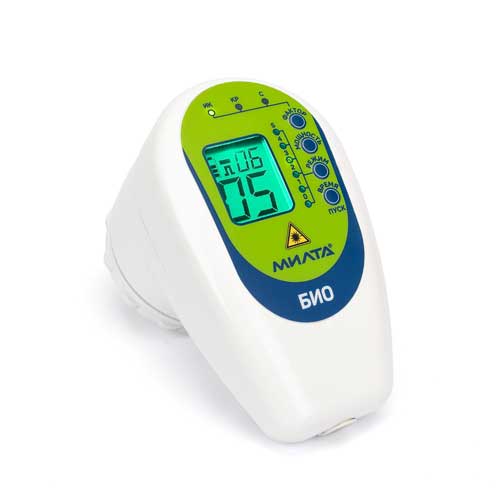

MILTA BIO is the newest device of MILTA series developed by «United Space Device Corporation». Its signature feature – a set of premade modes, made for specific illnesses. As well as that, MILTA BIO has the widest array of possible frequencies, as well as option to chose your radiation factor (infrared, red and blue laser). All this makes MILTA BIO the most multifunctional solution available for both professional and home use.
MILTA-F-5 (BIO) has proven its clinical effectiveness in the treatment of an extensive list of nosologies. Below you can see the list itself. For the treatment of each disease there is a developed, detailed method. The collection of methods is included in the price of the device and comes in the full kit.
Cardiovascular diseases
Respiratory diseases
Dermatology
Infectious diseases
Neuropathology
Diseases of the digestive system
Endocrinology
Obstetrics
Gynecology
Surgical diseases
Otolaryngology
Dentistry
Urology and Nephrology
Diseases of the musculoskeletal system
Pediatrics
Frequency modes
Mode |
Name |
Purpose |
Mode 1 |
Vitality |
A set of frequencies to stabilize the normal activity of cellular systems |
Mode 2 |
Chronic prostatitis |
Treatment of acute and chronic forms of organ diseases characterized by severe inflammation and pain. |
Mode 3 |
Acute pain |
The laser light emitted in this mode is intended for direct irradiation of zones with pain of an acute, spastic nature, having strong, burning, “tearing” sensations. |
Mode 4 |
Arthritis |
Treatment of inflammatory diseases of the joints, including rheumatoid arthritis, diseases of the ligamentous and muscular system. This mode is also used for photomodification of the blood when the projection zones of the vessels, spleen, and liver are irradiated. |
Mode 5 |
Atherosclerosis |
Direct effect on vessels affected by atherosclerotic plaques of type 2-4 to reduce them. |
Medical contraindications
Please note, that it is NOT RECOMMENDED to irradiate the area of the heart using a magnetic attachment, if you have an implanted artificial cardiac pacemaker.
In case of uncertainty, you must CONSULT a doctor!
Parameter |
Value |
The power consumed from the network (no more than), Wt |
5 |
Full charge time (no more than), h |
6 |
Area of terminal, cm2 |
3,8 |
Laser infrared radiation |
|
Wavelength, microns |
0,85—0,95 |
Pulsed radiation power, W |
0–14 |
Adjustment step, W |
2 |
Laser pulse duration, ns |
70–120 |
Maximum radiation power at the terminal output (at least), mW |
50 |
LED red light |
|
Wavelength, microns |
0,62–0,68 |
Maximum radiation power at the terminal output (at least), mW |
5 |
LED blue light |
|
Wavelength, microns |
0,45–0,48 |
Maximum radiation power at the terminal output (at least), mW |
10 |
LED infrared radiation |
|
Wavelength, microns |
0,85–0,89 |
Maximum radiation power at the terminal output (at least), mW |
50 |
Impulse frequency rate of laser radiation, Hz |
|
Mode 1 |
20–800 |
Mode 2 |
20–2720 |
Mode 3 |
26–3040 |
Mode 4 |
7,7–1550 |
Mode 5 |
20–2720 |
Fixation time at each frequency, s |
3 |
Radiation time, min |
0–20 |
The display time of the battery charge level before entering the mode standby (“sleep” mode) (not less than), sec |
30 |
Battery charge display |
constantly |
Overall measurements of the device, mm |
|
terminal (no more than) |
105х60х65 |
adapter (no more than) |
40х65х70 |
Mass of the device without spare parts and accessories (no more than), kg |
0,5 |
Mass of the device in the complete set (no more than), kg |
1 |
Manual in English and Russian
