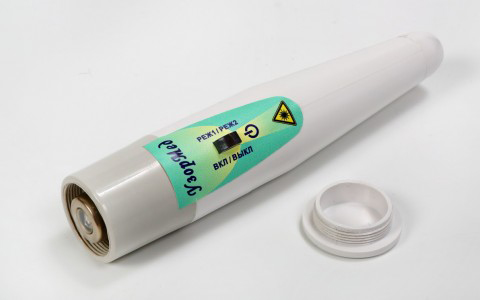

UZORMED-890 Laser device

Device  therapeutic laser Uzormed-890

The therapeutic factors of the Uzormed-890 magneto-laser therapy apparatus are pulsed near-infrared laser radiation and a constant magnetic field.

Infrared pulsed laser radiation provides, on the one hand, the effective penetration of irradiation into most internal organs, on the other hand, it is safe, especially when used at home.

The Uzormed-890 device is used to treat a wide range of diseases in various fields: orthopedics, dentistry, gynecology, neurology, dermatology, otolaryngology, pediatrics, sports medicine. It is used in  treatment of certain occupational and surgical diseases, as well as for prevention and recovery during rehabilitation period after operations.

The combined effect of laser radiation and a constant magnetic field is considered more effective. Due to this interaction, the depth of penetration of laser radiation into the thickness of biological tissues increases, which ensures the achievement of a positive effect in a shorter time.

The peculiarity of the laser therapeutic apparatus UzorMed®-890 is a significant increase in the effectiveness of laser therapy obtained due to polyfrequency exposure modes (several modes with different frequencies each).

Impulse action is carried out in two polyfrequency modes:
• “mode 1” - in the range from 50 to 280 Hz with a frequency change step of 10 Hz with a duration of each frequency of 4 seconds.
• “mode 2” - in the range from 800 to 1600 Hz with a frequency change step of 100 Hz and a frequency change period of 8 seconds.

The UzorMed®-890 device is modern and effective for carrying out laser therapy procedures at home. The device operates both from a network and from built-in batteries, which allows it to be used on a business trip, on vacation, and the combination of several medical factors in one device provides the maximum result when carrying out magneto-laser therapy procedures.

Technical characteristics of the apparatus "UzMed®-890"
• The wavelength of radiation, nm 890
• Pulse radiation mode
• Radiation power, W 25
• Operating mode 1.2
• Mode 1:
• Cyclic frequency change, Hz 50-280
• Frequency step, Hz 10
• Frequency change period, from 4
• Mode 2:
• Cyclic frequency change, Hz 800-1600
• Frequency step, Hz 100
• Frequency change period, from 8
• Timer, min 2
• Input voltage of the network adapter, V / Hz 100-242 / 50-60
• Maximum power consumed by the device from the network, VA, no more than 10
• Laser hazard class according to GOST IEC 60825-1-2013 3R
• General safety requirements in accordance with GOST R IEC 60601-1-2010, protection class / type II / BF
• Laser therapy has contraindications. Before use, consult a specialist.
 Registration certificate RZN 2018/7624 from 09/17/2018
Declaration of Conformity POCC RU D-RU.HA38.V. 00020/18

Set:
• radiation unit,
• 2 nozzles,
• case,
• charger
• guidelines
