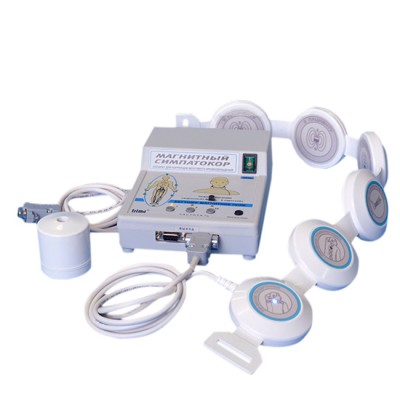

Magnetotherapy physiotherapy device Sympathokor

Full manual in English!

MAGNETIC SYMPATOCOR

The device is designed to correct the system of regulation of cerebral circulation by influencing the left and right projections of the upper cervical ganglia of the patient’s sympathetic nervous system by periodically blocking the activity of the ganglia with an electric current induced by a traveling magnetic field (BMP) due to the effect of self-induction.


The device "MAGNETIC SYMPATOCOR" most fully meets modern ideas about the optimal physiotherapeutic effect. (V. Ulashchik. The principle of optimality in physiotherapy. Minsk. 1980. P.5-13).

     It has an acting factor in the form of reversible traveling magnetic field that provides a dynamic effect, a resonant effect in the frequency range of the functioning of the basic systems of the body. There are three fixed modulation frequencies of a traveling magnetic field: 1; 5; 10Hz - allow effecting in synchronism either with the normal rhythm of heart contractions (1Hz), or with the functioning of the central nervous system (5 and 10Hz).
     Provides multi-channel impact, as allows you to connect simultaneously two emitters of a traveling magnetic field to affect the projection of the sympathetic ganglia and the lesion (eye, tooth, nerve exit).
     Allows a combined effect with other physical factors, for example, laser radiation, electrophoresis . *

  * The combination of electrophoresis with magnetophoresis gives an effect much higher than the total, since the foretetic properties of the magnetic field are more pronounced with an increase in the number of ions of the drug, and electrophoresis just contributes to their increase.

The main indications for the use of the apparatus

    Diabetic angio and polyneuropathy.
    Diabetic retinopathy, gastropathy.
    Autonomic dysfunctions, especially against diabetes mellitus.
    Various forms of migraine (simple and associated, radicular headache, tension headache, chronic daily headache).
    Hypertension stage I - II.
    The consequences of closed craniocerebral trauma, stroke.
    Degenerative eye disease; partial atrophy of the optic nerve; glaucoma neuropathy.
    Sensorineural hearing loss.
    Osteochondrosis of the cervical spine.
    Cerebral circulatory disorders associated with vertebrobasilar insufficiency in the cervical spine.
    Conditions of post-alcohol and post-drug withdrawal.

Magnetotherapy in the case of using the MAGNETIC SYMPATOCOR apparatus is contraindicated in acute myocardial infarction, stroke, systemic blood diseases, hypotension, infectious diseases in the acute period, fever of unknown etiology, purulent process (without outflow of abscess contents), thyrotoxicosis, cardiomyelitis syndrome in the area of ​​exposure, pregnancy (when exposed in the fetal area - abdomen, lower back).


Specifications

Magnetic induction on the surface of the BMP emitter
  tape:
  - in the "child" mode  - 15 ± 5 mT
  - in adult mode - 70 ± 10 mT
  round:
  - in the "child" mode - 5 ± 1 mT
  - in adult mode - 20 ± 10 mT
  pair prismatic for newborns: *
  - in the "child" mode - 3 ± 1 mT
  - in adult mode - 16 ± 10 mT

 The nature of the magnetic field: variable, running, reverse

 BMP reversal time (change of direction) - 30 ± 5 s

 BMP modulation frequencies (channel re-enable) - 1; 5; 10Hz

 Carrier frequency of the magnetic field - 50 Hz

 The number of magnetic field sources in the emitters - 6 pcs

 Automatic procedure time - 10 ± 0.5 min

 The power consumed by the device from the network 220 V/ 50 Hz, no more 20V/A

 Overall dimensions of the electronic unit - 190 × 140 × 65mm

 The mass of the device (in a set), no more - 1,8kg
