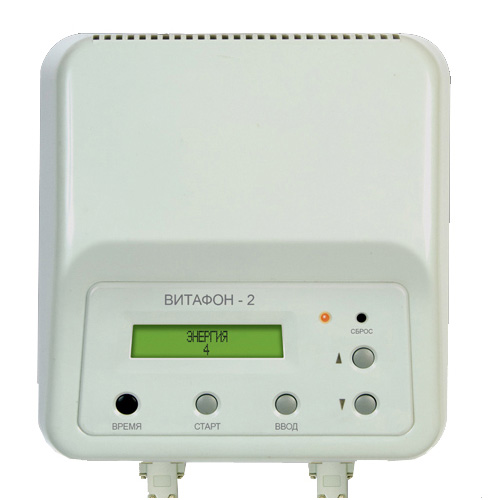

Vitafon-2 (extended complect)

Full manual in English!

VITAFON is unique technological solution in vibroacustic therapy. Vibroacustic therapy considers micro vibrations in frequency range of 20-18000 Hz with amplitude to max 100 microns. Micro vibrations exist in every living being: plants, animals and humans. Sources of micro vibrations can be inner (heartbeat, artery pulse and muscular activity) and also can be external (wind for plants, shower, massage, physical activity... for humans). Knowing that facts it is clear that vibroacustic therapy is harmonized with biomicrovibrations and completely safe for human organism. Vibroacustic technology started to develop in XX century 70's when its therapeutic effect was recognized and used in treating children with mental disorders. Today Vibroacustic Therapy is widely spread, and in some countries it is considered as method of conventional medicine. Biggest technological problem is how to find best frequency for certain tissue, how to adapt the amplitude, to affect strictly diseased area and apply suitable dosage. VITAFON device covers wide area of vibroacustic effects, changing frequency and amplitude in cycles affecting in that way all 200 sorts of tissue. That makes VITAFON perfect technological solution in the area of vibroacustic.

VITAFON is to be used in hospitals, other medical institutions and sanatoriums. It can be also effectively applied by a patient at home, after consultation with a doctor and under his supervision.

ADVANTAGES OF VITAFON 2 MODEL IN COMPARISON TO VITAFON T:

• The advantages of Vitafon 2 in comparison to Vitafon T reflect in the following:
• Parameters: power, body height and body mass can be adjusted according to your needs; this enables the adjustment of sound wave strength according to your body mass.
• Vitafon 2 model consists of 13 sound applicators, 8 of which are fixed in the mattress whose dimensions are 37x11x1 cm. Beside 13 micro vibration applicators, Vitafon 2 also contains 1 IR emitter. The advantages of a great number of applicators are:
• Large surface of the body can be treated simultaneously and therefore total duration of treatment during the day is shorter.
• The improvement is obtained 30% faster than with Vitafon T.

Specification:
Mains voltage – alternating current 220±22 V;
Mains frequency 50 Hz;
Power consumption no more than 8 W;
Direct current voltage 12,6 ± 1,3 V;
Can be used without brake no more than 8h;
Dimensions: 185x195x85 mm
European standard electric plug
The number of micro vibration frequency subranges :
  - Lower frequency 38+  5 Hz
  - Higher frequency of 2 subrange, within 20000 Hz
Duration of one cycle of the impulse vibration frequency alternating in MODE 3 and MODE 4 - 0,8-1,2 s
The micro vibration amplitude of applicators membrane at lowest frequency depending of applicators type:
Single Vibrafon 16-28 µm
Dual Vibrafona 10-22 µm,
«Vibroplate» type of Vibrafon 2-6 µm
Power of IR emit:
Minimal no more than 3.0 mW
Maximal between 20,0 - 40,0 mW
Medium length of IR amplitude is between 0,95 +/- 0,4mW
Weight, net: not more than 3,25 kg
Manual instruction (Russian and English Language).
