Vitafon IR

Full manual in English!

VITAFON is unique technological solution in vibroacustic therapy. Vibroacustic therapy considers micro vibrations in frequency range of 20-18000 Hz with amplitude to max 100 microns. Micro vibrations exist in every living being: plants, animals and humans. Sources of micro vibrations can be inner (heartbeat, artery pulse and muscular activity) and also can be external (wind for plants, shower, massage, physical activity... for humans). Knowing that facts it is clear that vibroacustic therapy is harmonized with biomicrovibrations and completely safe for human organism. Vibroacustic technology started to develop in XX century 70's when its therapeutic effect was recognized and used in treating children with mental disorders. Today Vibroacustic Therapy is widely spread, and in some countries it is considered as method of conventional medicine. Biggest technological problem is how to find best frequency for certain tissue, how to adapt the amplitude, to affect strictly diseased area and apply suitable dosage. VITAFON device covers wide area of vibroacustic effects, changing frequency and amplitude in cycles affecting in that way all 200 sorts of tissue. That makes VITAFON perfect technological solution in the area of vibroacustic.

VITAFON is to be used in hospitals, other medical institutions and sanatoriums. It can be also effectively applied by a patient at home, after consultation with a doctor and under his supervision.
Vibroacoustic therapy - contact action of micro-frequency sound vibrations in human and animal tissues. This process is called Effect Vibrosoundtouch.

Therapeutic and prophylactic effects due to the influence of biophysical biological micro-vibration - a vital, necessary and almost always limited resources of the organism.

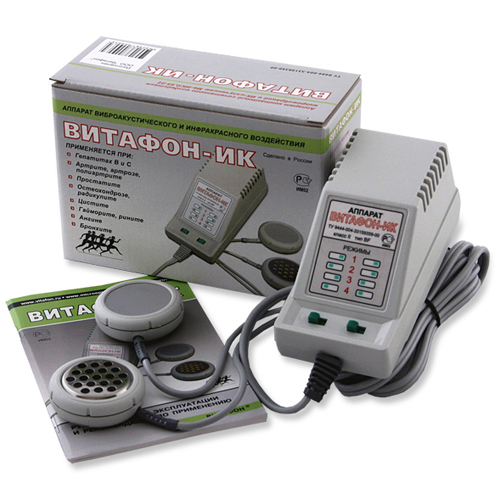

Vitafon IR is different by amplitude and frequency and works using infrared radiation to strengthen the healing effect.
This device helps you to benefit from both vibroacoustic and infrared impact. Vitafon IR is safe for children and elderly and can be used at home. It is especially effective in fighting lymph and blood circulation malfunction. All Vitafon devices are designed not to reduce the symptoms of an illness but to help body fight the source of a disease and become resistant to it.

This device:
• was registered as a medical healing device in 2001;
• is used both in clinics and as a home treatment device;
• has an average term of work not less than 5 years.

Because of combination of IR radiation and vibroacoustic this model doesn't have a pulsation mode, but it has 4 additional vibroacoustic grades. You can set the needed mode according to your health condition and goals.

Healing effect of infrared radiation:
• IR therapy is a proven effective method for pain relief and general healthcare. One of the most important advantages of this method is that it can be safely used for self-treatment. Infrared radiation can achieve directly parts of our bodies that need treatment and make a healing impact on neurons and blood capillaries. Also, human body absorbs most of IR radiation without loss so we get maximum effect from treatment.
• Vitafon IR uses both infrared and vibroacoustic influence which reinforce each other to get the best results. This healing device helps to reduce inflammation, edema and pain and makes a trophic and regeneration impact.

Vibroacoustic therapy - a contact action microvibrations audio frequency on body tissues of humans and animals. Process called impact Vibrosoundtouch.
Curative and preventive effects are caused by the action of biological biophysical microvibration - vital, irreplaceable and almost always a scarce resource body. Compensation of this deficit achieves the following effects:
• Amplification pumping function as lymphatic and venous capillaries and small blood vessels , thereby improving drainage tissues.
• Increase the yield of blood cells (lymphocytes, red blood cells, etc.) of the arterial capillaries in the interstitium and progenitor hematopoietic stem cells from the bone marrow into the venous sinus.
• Increase the conductivity of the interstitium in the movement of metabolites and catabolites and increase the frequency of contacts of biological components in the interstitium , thereby intensifying and other immune reactions.
• Increasing the permeability of endothelial gaps lymphatic capillaries for large chylifactive fractions, thereby contributing to a decrease in oncotic pressure in the tissue and an increase in output in the circulation of cytokines and mediators, providing a more adequate system response.
• Acceleration of filtration processes occurring on porous membranes (eg, kidney nephrons).
• Normalization excitability of mechanoreceptors (Pacinian corpuscles, Meissner, free nerve endings, etc.).

Specification:
Supply voltage: 220±22 V
European standard electric plug
Power supply frequency: 50 Hz
Power consumption: not more than 15 W
Duration of continuous work, not less than 8 hours
The number of microvibration frequency subranges :
  - Lower frequency of 1 subrange, within 30-60 Hz
  - Higher frequency of 1 subrange, within 1000-3000 Hz
  - Lower frequency of 2 subrange, within 200-800 Hz
  - Higher frequency of 2 subrange, within 8000-16000 Hz
Duration of one cycle of the microvibration frequency change: 60-140s
The microvibration amplitude at:
  - Regimen 4 14±4 µm
  - Regimen 3 (0,5-0,7)А4 µm
  - Regimen 2 (0,5-0,7)А3 µm
  - Regimen 1 (0,6-0,85)А2 µm
Power of the infrared radiation:
  - minimal, up to 3 mWt maximal 20-40 mWt
The infrared radiation wavelength 0,95±0,04 µm
Weight, net: not more than 0,7 kg
Overall dimensions: not more than 120х90х60 mm

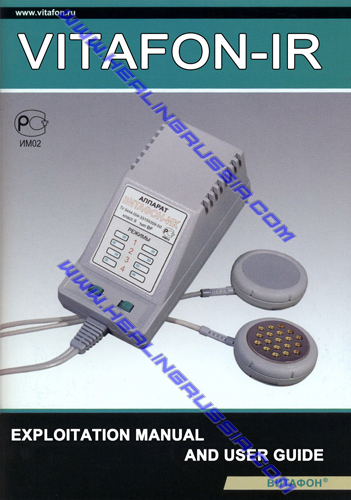

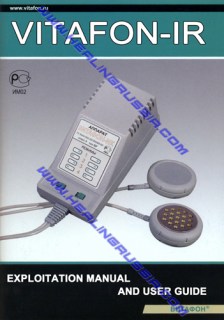

Manual instruction (Russian and English Language).
