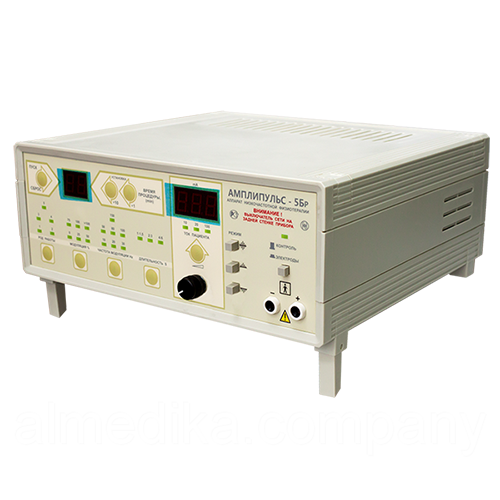

Amplipulse-5BR

Features and advantages of the "Amplipulse-5 Br" device:

• It is used in  treatment of the following diseases:
- peripheral nervous system with painful syndromes (neuro-myositis, neuralgia, lumbago, other reflex syndromes);
- the nervous system with vegetative-vascular disorders and trophic disorders;
- nervous system with motor disorders in the form of central and peripheral paresis;
- hypertension 1,2.A and 2B degrees;
- atherosclerotic obliteration of the vessels of extremities, chronic lymphostasis of legs, post-traumatic edema and pain syndrome;
- digestive organs, functional disorders of the pancreas, peptic ulcer;
- disorders of  metabolism, diabetes mellitus;
- respiratory organs;
- rheumatoid arthritis with a minimal and medium degree of activity of the process, arthrosis, periarthritis;
- chronic inflammatory diseases of the female reproductive system;
- impotence of men of a functional nature;
- chronic prostatitis, cystology, bedwetting in children, women, urolithiasis.

• 5 types of therapeutic effects (type of work):
- continuous exposure to the carrier frequency with a choice of different modulation ratios and modeling frequency;
- intermittent action of a series of modulated oscillations with a choice of frequency and modulation coefficient alternating with a pause;
-continuous action of a series of modulated oscillations with a choice of frequency and modulation factor, alternating with a series of unmodulated oscillations of the carrier frequency;
- continuous action of a series of modulated oscillations with the possibility of choosing the frequency and modulation coefficient, alternating with a series of modulated oscillations with a frequency of 150 Hz;
- intermittent action of a series of modulated oscillations with a choice of modulation coefficient alternating with a series of modulated oscillations with a frequency of 150 Hz and a pause;
• Availability to set up a procedure timer and display the remaining procedure time;
• Presence of a sound signal and automatic shutdown after the procedure;
• High reliability;
• Compliance with the requirements of regulatory documents: GOST R50267.0-92, GOST R 50267.10-93, GOST R 51318.11-99, GOST R 50267.0.2-95.

Technical characteristics of the device "Amplipulse-5 Br":
Number of impacts: 5
Sinusoidal carrier frequency, Hz (5000 ± 100) Hz
Sinusoidal modulating voltage frequency (set discretely), Hz 10, 20, 30, 50, 80, 100 and 150 Hz
Modulation factor (set discretely) 0; 25; 50; 75; 100 or more 100% (overmodulation mode)
Patient current range (set smoothly), mA 0-10, 0-20, 0-100
Power supply 220V / 50Hz
Power consumption, V • A 30
Average service life 4 years
1 year warranty
Overall dimensions, mm: 280x290x120
Overall dimensions in packing, mm: 290х310х160
Weight, kg: 2.8
Weight with a set of spare parts, kg: 4

Amplipulse-5Br delivery set:

- Apparatus Amplipulse-5 Br, 1 pc.
- Pillow (120x170mm), 2 pcs.
- Pillow (100x145mm), 2 pcs.
- Pillow (80x120mm), 2 pcs.
- Electrode (100x150x0.3mm), 2 pcs.
- Electrode (80x125x0.3mm), 2 pcs.
- Electrode (60x100x0.3mm), 2 pcs.
- Cable for connecting plate electrodes, 1 pc.
- Operating instructions, 1 pc.
Low-frequency physiotherapy device "Amplipulse-5Br" (1-channel) has a Registration Certificate of the Russian Federation and a Declaration of Conformity to GOST R.

 Manual in English and Russian languages
